10W black LED floodlight spotlight Osram 3030

10W black LED floodlight spotlight Osram 3030

LED Floodlight Spotlight

Model No.: TGS-10W

Wattage: 10W

LEDs: 10pcs Osram/Philips 3030

Size: 166*116*32 mm

Input voltage: AC 85-265V

Warranty: 3/5 years

  • Description
  • Inquiry

10W black LED floodlight spotlight Osram 3030 for billboard signs



Introduction:

10W black LED floodlight spotlight is the best selling series for outdoor billboard signs. Good waterproof and heat dissipation design.

Using Osram or Philips 3030 LEDs, high CRI(>80Ra) and lighting efficiency more than 125LM/W, provide high brightness lighting with natural rendering color to billboard signs, pictures.

Osram LEDs, Meanwell drivers, high quality Aluminium shell, 5 years warranty, it is designed for applications with high requirements.



Features:

– Innovative G shape buckle, lock the surface tempered glass securely without screws, good looking

– Special optical design, lighting efficiency increased by 50% more than traditional ones

– Using Osram or Philips 3030 SMD LEDs, 1W per LED, other LEDs still work well if some LEDs failed

– High CRI >80Ra, high lumen output more than 125LM/W

– Streamlined heat sink design of Aluminium shell, good heat dissipation while keeping ultra-slim body

– Can choose Meanwell driver for 5 years warranty

– 270 degrees install angle adjustable

– Can stand level 17 hurricane



Pictures Demonstration:

10-200W Osram 3030 LED floodlight spotlight for billboard signs 1 ritop lighting

– Innovative G shape buckle, lock the surface tempered glass securely without screws

10-200W Osram 3030 LED floodlight spotlight for billboard signs 2 ritop lighting

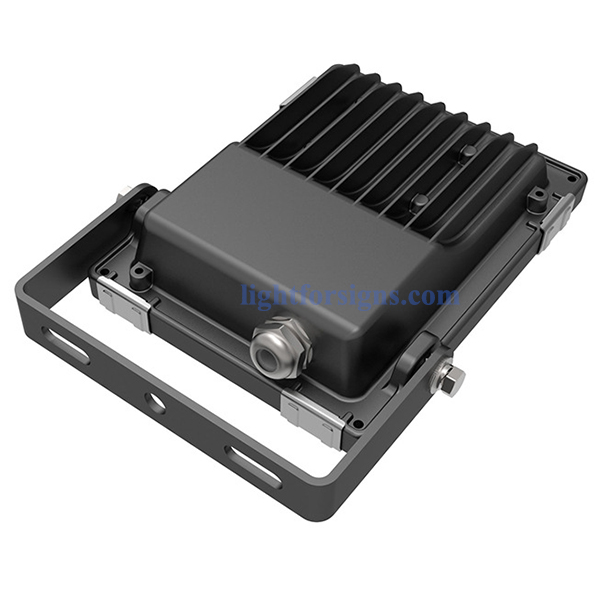

– Structure: streamlined heat sink design of Aluminium shell, good heat dissipation while keeping ultra-slim body



10-200W Osram 3030 LED floodlight spotlight for billboard signs 4 ritop lighting

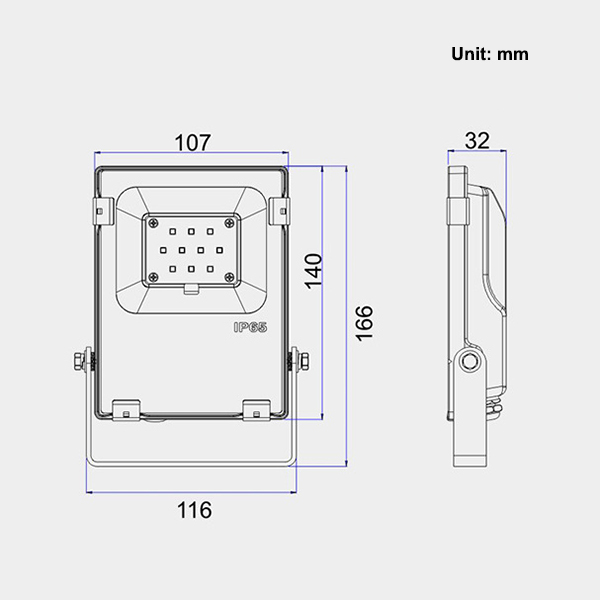

10W black LED floodlight spotlight osram 3030 size ritop lighting



– Special optical design, lighting efficiency increased by 50% more than traditional ones

10-200W Osram 3030 LED floodlight spotlight for billboard signs 3 ritop lighting

Applications:

– Outdoor big size advertising billboards, signs

– Exhibition hall & stand, other spot lighting, focus lighting applications

– Shopping mall, park, parking lot, playground, gymnasium

– Building facade, public corridor, other wall-wash lighting

– Other indoor and outdoor lighting

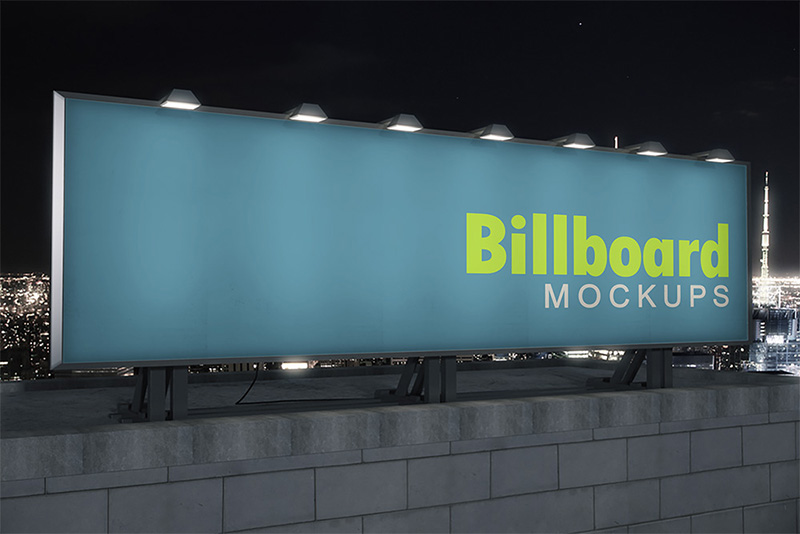

10-200W Osram 3030 LED floodlight spotlight for billboard signs application ritop lighting



Specifications:

Product Specifications
Power10 WLED Type & Quantity10pcs 3030 LED
Item NumberTGS-10WLED Chip BrandsOsram / Philips
Dimension166*116*32 mmIP RateIP65
DriverMeanwell/CE certificatedWarranty3-5 years
Working Temperature-30~+50°CWorking Humidity10%~95%RH
Best Working Temperature-20~+30°CStorage Temperature-40~+60°C
Packing40pcs per carton, carton size: 43*43*27cm, GW: 35KG/ctn
Electrical & Optical Parameters
Input VoltageAC 85-265VBeam Angle120 degrees
Lumen Output>1200 LMColor Temperature2700-6500K
CRI>80 RaPower Factor>0.95



Full Series:

For 100W Osram 3030 LED floodlight spotlight, this series has 10-200W available as below.

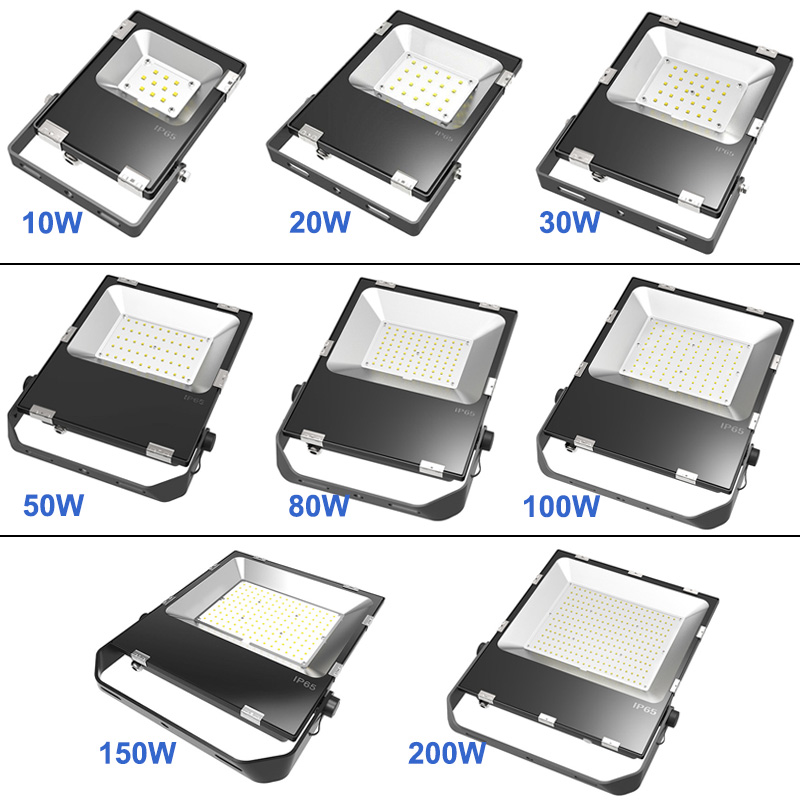

10-200w led floodlight spotlight collection



Item NoWattageLEDsSizeLumenBeam Angle
TGS-10W10W10pcs 3030166x116x32mm>1200LM120 degrees
TGS-20W20W20pcs 3030216x162x40mm>2400LM120 degrees
TGS-30W30W30pcs 3030226.5x167x40mm>3600LM120 degrees
TGS-50W50W50pcs 3030310x220x47.5mm>6000LM120 degrees
TGS-80W80W80pcs 3030354x245x55mm>9600LM120 degrees
TGS-100W100W100pcs 3030402.5x295x60mm>12000LM120 degrees
TGS-150W150W150pcs 3030430x330x60mm>18000LM120 degrees
TGS-200W200W200pcs 3030470x360x60mm>24000LM120 degrees



We’ve developed full range of 10W black LED floodlight spotlight series, can change parts and designs to meet different requirements

You always welcomed to tell us your ideas and requirements, we will provide the right solution and products accordingly.

Please click the link to get back to catalogue of LED floodlight and spotlight.
