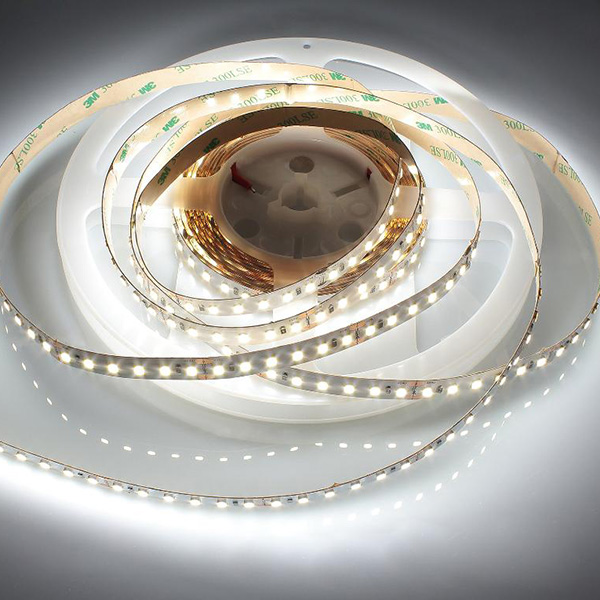

120 LEDs 2835 24V 10 meters long flexible led strips for lightbox signs
Introduction:
long flexible led strips, It is specially designed for long distance application, max 10 meters long with only one end on power is enough.
Most importantly, they are still constant voltage mode. Easy installation and connection.
Features:
1. Constant voltage mode, max 10 meters long with only one end on power
2. 120pcs 2835 per meter, DC 24V, cuttable every 6 LEDs
3. Wattage is 9.5W per meter, can be customized as requested
4. Stable and good quality, long working life
5. Good color temperature consistency
Applications:
Suitable for different applications like:

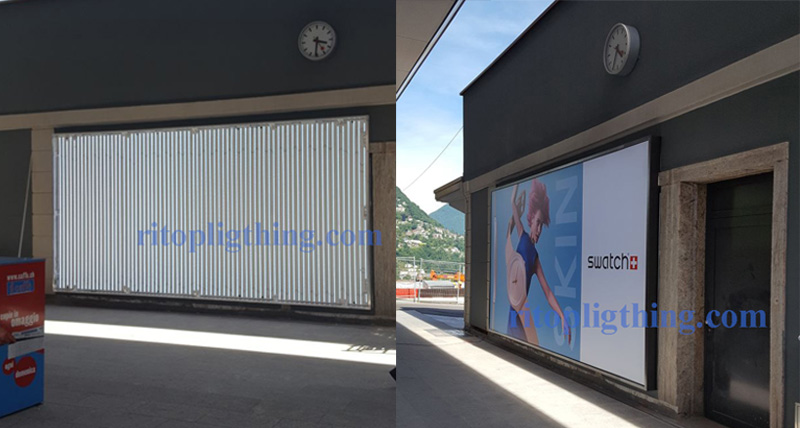

– Lightbox from small to large size, signs, channel letters
– Exhibition stand lighting
– Linear lighting
– Back lighting
– Indoor & outdoor decorative lighting
Specifications:
Product Specifications | |||
Power | 9.5W/meter | LED Type & Quantity | 120pcs 2835 per meter |
Item Number | FS-LS2835N120 | LED Chip Brands | Epistar/Sanan |
Dimension | 10000*8 mm | IP Rate | IP20/65/68 |
Certificates | CE, RoHS | Materials | – |
Warranty | 2 years | Packing | 10m per reel |
Cuttable | Every 50mm length, DC 24V: Every 6 LEDs | ||
LED Distance | DC 24V: 8.3mm | ||
Electrical & Optical Parameters | |||
Working Voltage | DC 24V | Beam Angle | 120 degrees |
Lumen Output | 950-1050 LM/meter | Color Temperature | 2700-7000K |
CRI | >75 Ra | Connection | Max 20 meters in series |
Lighting Area | – | ||
Application Data | For backlit letters signs thickness: >5cm |
More Options:
We have various accessories to work with flexible LED strips, can also provide customization according to your requirements, you are always welcomed to tell us your ideas, we will provide the right solution.
For more styles with different specifications, please click the link–Flexible LED Strips.
1. Cuttable unit:
Cuttable every 50mm length, Every 6 LEDs @DC 24V.
2. Connection:
120 LEDs 2835 24V long flexible led strips is 10 meters per reel,
Different strips should be connected in parallel.
It is recommended to make the flexible LED stripe both ends connect to power supply.
Isolated cable ends to prevent short circuit.
3. Applications:
