3 meters long light distance sidelit edge lit LED modules oval lens

15W 3 meters long light distance sidelit edge lit LED modules oval lens for light box signs

Introduction:

Sidelit edge lit LED modules, designed as edge-lit or side lighting source, mainly used in single, double sided light boxes.

Especially slim double sided light boxes, exhibition stand, and stretch ceiling.

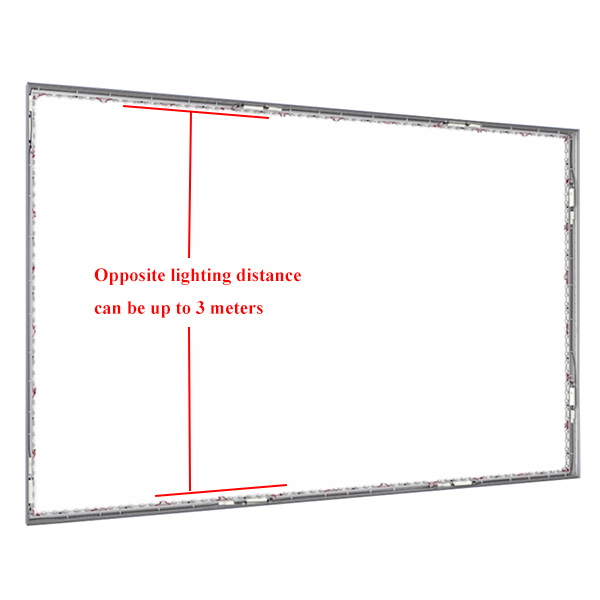

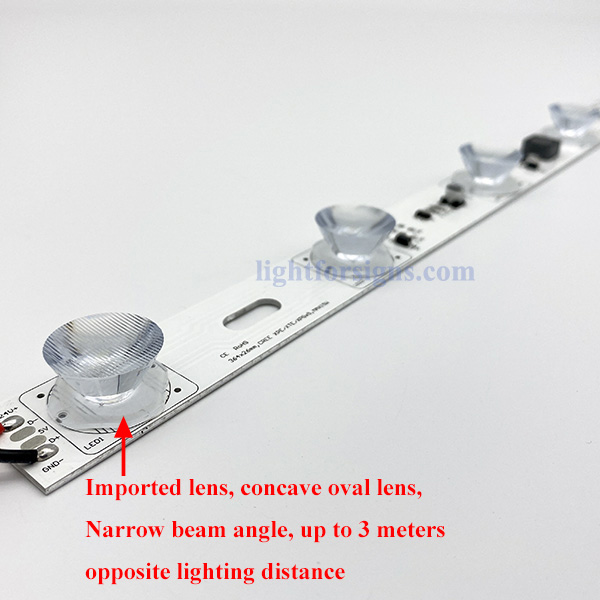

Adapting imported PMMA oval optical lens, thanks to the extra narrow beam angle, opposite lighting distance of light box can be max 3 meters or even more.

Recommended double sided light box with thickness minimum 80mm.

Features:

– Use CREE XPE, XTE, XPG series or Osram LED, high lumen output, long working life.

– 11*35 degrees focused optical lens, perfect for edgelit lightbox and signs, with LEDs placed on two sides, providing an even glow over the printed graphic, max opposite distance can be 3 meters or even more.

– Constant DC 24V input, build on board driver provide constant current for LEDs, so that LED can work longer time, more stable and with higher efficiency.

– With function that the LED module can still working when input “+”, “-” connected inversely.

– PWM dimmable function available.

– With screws hole, or heat conductive adhesive tape(optional) for easy installation.

– Full range of accessories available.

– 5 years warranty.

Applications:

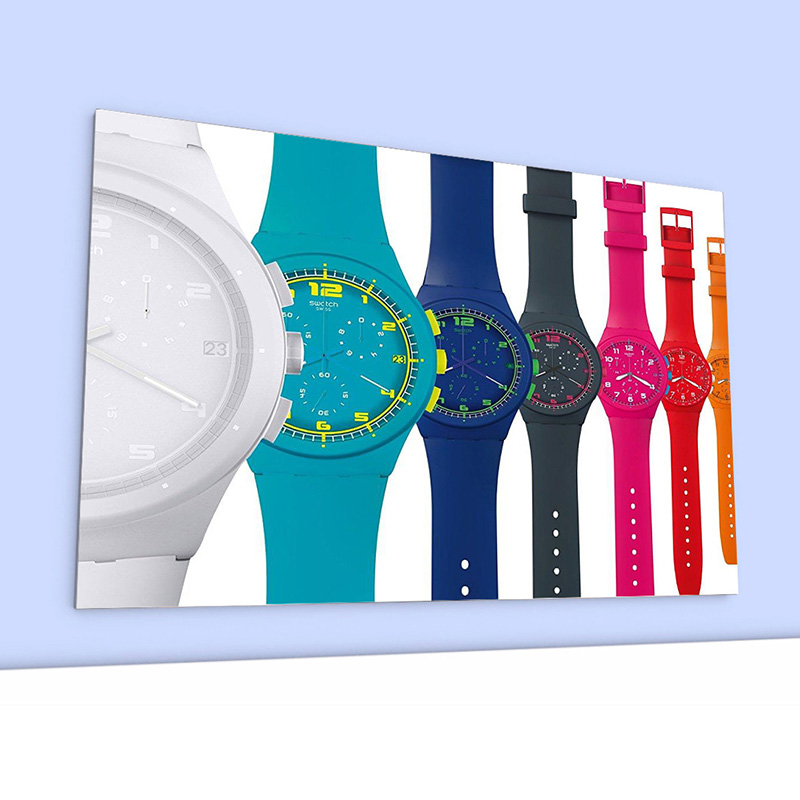

– For edge lit single sided or double sided light box and signs

– Light box on the floor, on the wall or in the ceiling

– Especially large size light boxes

– Exhibition stand

– Stretch ceiling

– Other advertising or decorative lighting

Specifications:

Full range of sidelit edge lit LED modules:

Has 1, 3, 5, 6, 9 LEDs version available, can also be customized according to your requirements.

We’ve developed full range of sidelit edge lit LED modules, can change parts and designs to meet different requirements.

You are always welcomed to tell us your ideas and requirements, then we will provide the right solution and products accordingly.

Also have different types of accessories for quick and easy installation, click the link to know more-Accessories.

1. Accessories:

We have different kinds of accessories available, can also provide custom-made ones according to your requirements.

2. Dimming system:

We developed perfect dimming system, multi-functional, easy operation, good quality.

Click the links to know more about LED Remote Controller and LED Dimmer.

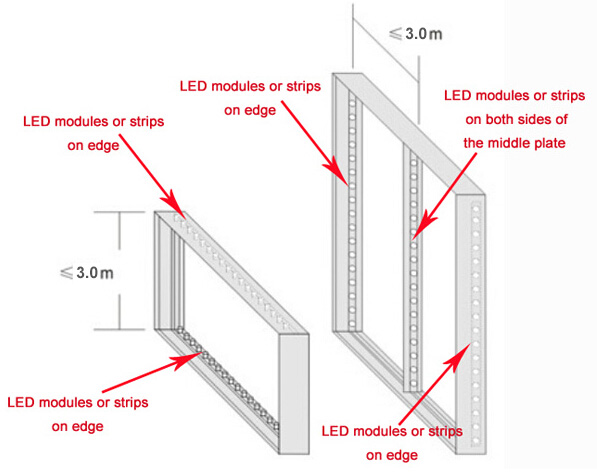

3. Install & Applications:

4. Packing:

10pcs per inner box, 20 inner boxes per carton, 200pcs per carton (for EH1-WS5-CREE)

Inner box size: 540*150*35mm Outer carton size: 560*350*350mm Gross weight: 16 KG/outer carton
