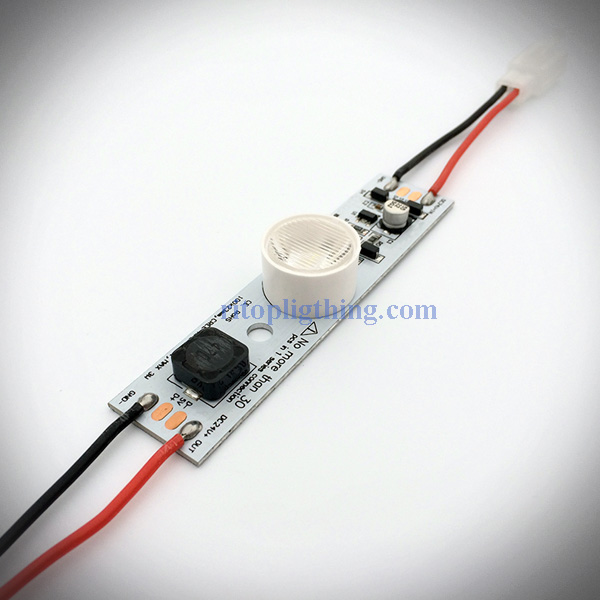

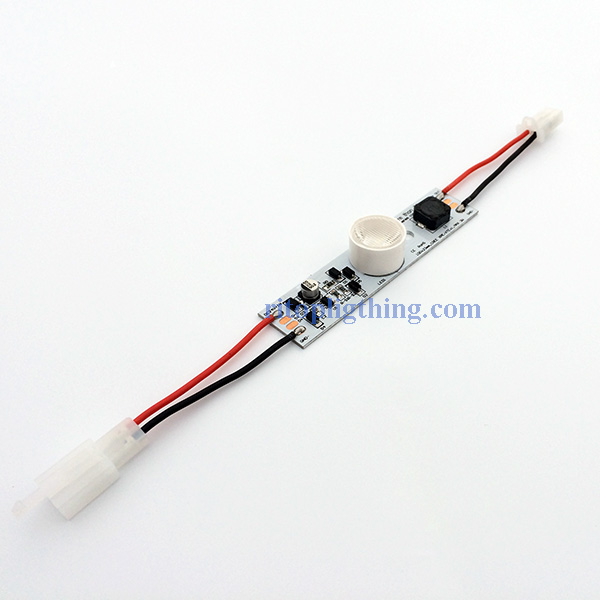

3W CREE high power edgelit LED module with lens
3W CREE Edge-lit LED Module
Model No.: EH1-WS1-CREE
Wattage: 3W Max
Size: 100*23*15mm
Input voltage: DC 24V
Lens angle: 10*45 degrees
LED: 1pcs CREE XTE/XPE
Warranty: 5 years
- Description
- More
- Inquiry
3W CREE high power edgelit LED module with lens for light box
Introduction:
High power edgelit LED module, is designed as edge lighting or side illuminating source, mainly used in single sided light box, double sided light box, exhibition stand, and stretch ceiling.
Optics lens, providing intense and uniform illumination for the light box and signs.
Features:
– Use CREE XPE, XTE, XPG series or Osram LED, high lumen output, long working life.
– With 10*45 degrees high quality optics lens, perfect for side illuminated lightbox and signs.
– Constant DC 24V input, build on board driver provide constant current for LEDs, making LED work longer time, more stable and with higher efficiency.
– With function that the LED module can still working when input “+”, “-” connected inversely.
– PWM dimmable function available, Waterproof version available.

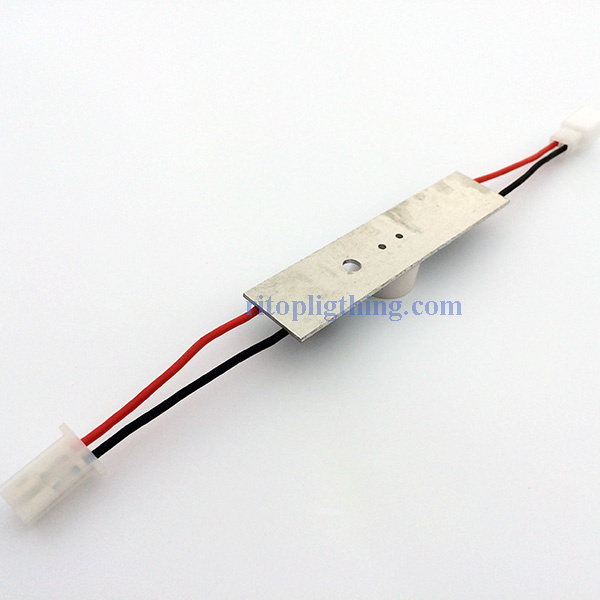

– With screws hole on strip, or heat conductive adhesive tape(optional) for easy installation.
– Full range of accessories available.
– 5 years warranty.
Applications:
– For edgelit single sided or double sided light box and signs
– Light box on the floor, on the wall or in the ceiling
– Exhibition stand
– Stretch ceiling
– Other advertising or decorative lighting
Specifications:
Product Specifications | |||
Power | Max 3 W | LED Type & Quantity | 1 pcs 3535 |
Item Number | EH1-WS1-CREE | LED Chip Brands | CREE XTE |
Dimension | 100*23*15 mm | IP Rate | IP20 |
Cuttable | NO | LED Distance | / |
Certificates | CE, RoHS | Materials | Aluminum PCB |
Warranty | 5 years | Packing | 600pcs/ctn |
Cable | 7-10cm long cable between two modules, can be customized | ||
Application | For edge-lit light box or signs | ||
Electrical & Optical Parameters | |||
Working Voltage | DC 24V | Beam Angle | 10*45 degrees |
Lumen Output | 200-220 LM | Color Temperature | 2700-7000K |
CRI | 75-85 Ra | Connection | 30pcs Max in series |
Lighting Area | – | ||
Application Data | For Edge-lit, Light box thickness: single sided: 8-15 cm double sided: 15-30 cm Length: Unlimited Height: 1.0-2.5 meter |
Full Series:
Has 1, 3, 5, 6, 9 LEDs version available, can also be customized according to your requirements.
1pcs LED | 3pcs LEDs | 5pcs LEDs | 6pcs LEDs | 9pcs LEDs | |
Item Number | EH1-WS1-CREE | EH1-WS3-CREE | EH1-WS5-CREE | EH1-WS6-CREE | EH1-WS9-CREE |
Size | 100*23*15 mm | 200*23*15 mm | 360*23*15 mm | 390*23*15 mm | 495*23*15 mm |
LED type | CREE XTE/XPE/XPG Series | ||||
Max Wattage | 3 W | 9 W | 15 W | 18 W | 27 W |
Lumen | 200-220 LM | 600-660 LM | 900-1100 LM | 1100-1350 LM | 1800-2000 LM |
Cuttable | NO | NO | NO | Yes (every 3 LEDs) | Yes (every 3 LEDs) |
PWM dimmable | Optional | ||||
Max in series connection | 30 pcs | 10 pcs | 6 pcs | 5 pcs | 3 pcs |
LED distance | 50 mm LED center to PCB edge | 80 mm LED center to LED center | 80 mm LED center to LED center | 70 mm LED center to LED center | 55 mm LED center to LED center |
Input voltage | DC 24V (Build on board constant current driver) | ||||
Color Temp. | 2700-7000 K | ||||
Beam angle | 10*45 degrees or Customized | ||||
Temperature | Operating temperature: Max 230℃ for LED and other electronic parts, 70℃ for other parts, Ambient temperature: -30 to 60℃ | ||||
Inverse input | LED module can still working when “+” “-” input connceted inversely |
More Options:
We’ve developed full range of the edgelit led module, can change parts and designs to meet different requirements.
You are always welcomed to tell us your requirements, we will provide the right solution accordingly.
Also have different types of accessoies for quick and easy installation, click the link to know more-Accessories.
1. Accessories:
We have different kinds of accessories available, can also provide custom-made ones according to your requirements.
2. Dimming system:
We developed perfect dimming system, multi-functional, easy operation, good quality.
Clicking the links to know more about LED Remote Controller and LED Dimmer.
3. Install & Applications:
4. Packing:
30pcs per inner box, 20 inner boxes per carton, 600pcs per carton (for EH1-WS1-CREE)
Inner box size: 540*150*35mm Outer carton size: 560*350*350mm Gross weight: 17 KG/outer carton
