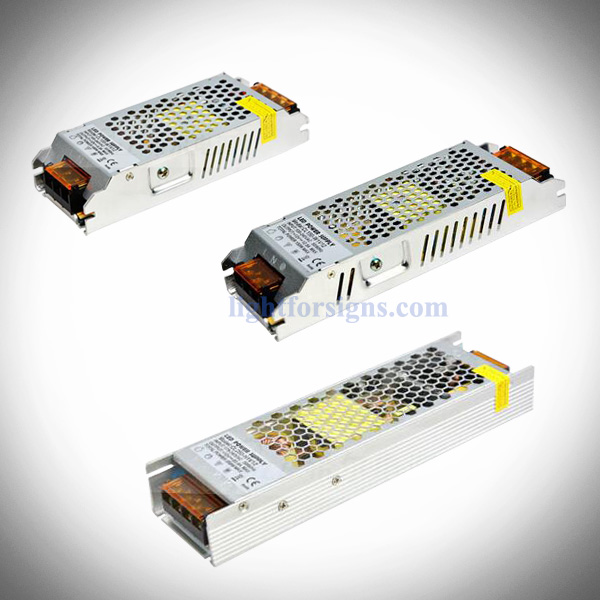

60-300W light box internal led driver power supply
Model No.: CL-HV
Wattage: 60-300W
Input voltage: 110-240VAC
Output voltage: 12/24V
Efficiency >90%, PF >0.95
- Description
- Inquiry
60-300W light box internal led driver power supply
Introduction:
12V 24V 60-300W light box internal led driver power supply series is slim linear LED driver with constant voltage output.
Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20°C~+75°C case temperature under free air convection.
Ultra slim thin design with low profile and slim linear housing which is perfect for lightbox signs, signage and linear luminaire applications which are with limited space, can minimize interference to lighting effect.
Features:
– Slim and Linear housing design, small size for limited space applications
– Silver body color, help to reflect light back to light box textile/fabric
– 2 years warranty
Applications:
– Lightbox and signs
– Signage and display
– Cove lighting
– Panel lighting, strip lighting
– Decoration lighting, troffer lighting
Specifications:
Product Specifications | |||
Wattage | 60-300W available | Input Voltage | AC 110-240/175-240V |
Item Number | CL-**HV | Output Voltage | DC 12/24V |
Dimension | Refer to below table | Output Current | Refer to below table |
Power Efficiency | 85-90% | Powe Factor | >0.9 |
Short Circuit Protection | Yes | Over Current Protection | Yes |
Over Loaded Protection | Yes | High Temp. Protection | Yes |
Operating Temperature | T case=-20~50 °C | Working Humidity | 20-95% RH |
Storage Temperature | -20~50 °C | Storage Humidity | 10-95% RH |
Materials | Aluminium housing | IP Rate | IP20 Non-waterproof |
Warranty | 2 years | Certificates | CE, RoHS |

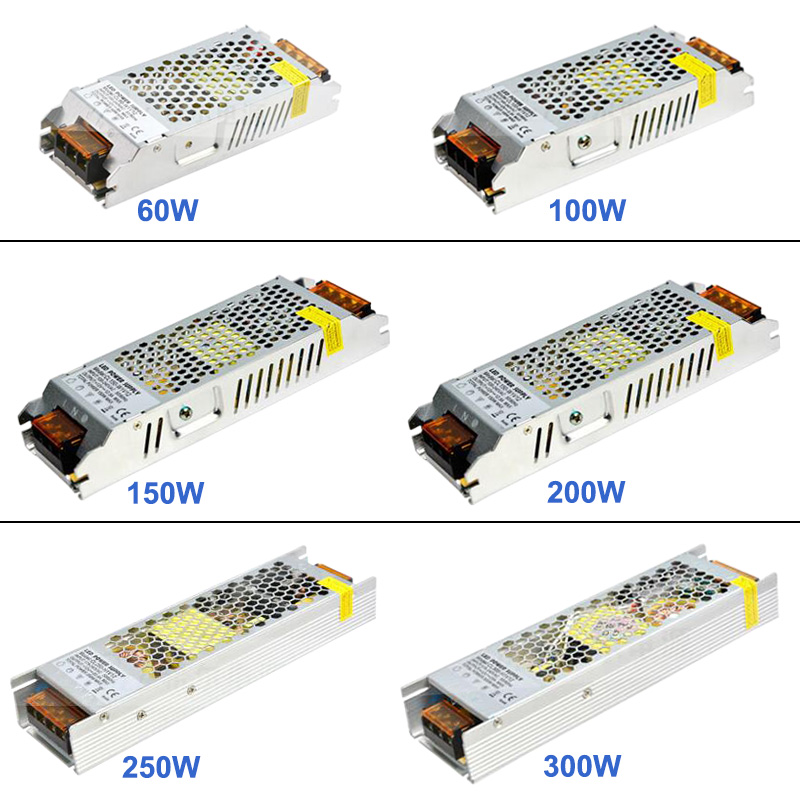

Full series of light box internal led driver power supply (other wattage):
Item No | Wattage | Input Voltage | Size | Output Voltage | Output Current |
CL-60HV | 60W | AC 110-240V | 139*55*28 mm | DC 12/24V | 5/2.5A |
CL-100HV | 100W | AC 110-240V | 139*55*28 mm | DC 12/24V | 8.32/4.16A |
CL-150HV | 150W | AC 110-240V | 178*61*28 mm | DC 12/24V | 12.5/6.25A |
CL-200HV | 200W | AC 175-240V | 178*61*28 mm | DC 12/24V | 16.6/8.33A |
CL-250HV | 250W | AC 175-240V | 215*61.7*30.8 mm | DC 12/24V | 20.8/10.4A |
CL-300HV | 300W | AC 175-240V | 215*61.7*30.8 mm | DC 12/24V | 25/12.5A |
