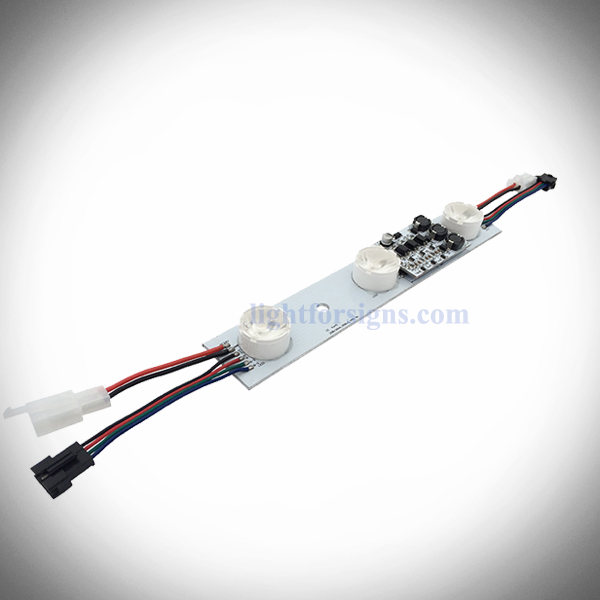

High power side lighting RGB LED modules

Model No.: EH1-WS3-RGB

Wattage: 9W Max

Size: 208*36*15mm

Input voltage: DC 24V

Lens angle: 10*45 degrees

RGB control type: Constant voltage

Description
More
Inquiry

9W high power side lighting RGB LED modules color change lightbox

Introduction:

High power side lighting RGB LED modules, is designed as edge illuminating or side lighting source, mainly used in single sided light box, double sided light box, exhibition stand, stretch ceiling and other color changing applications.

With focused optical lens, simply install the LED modules on two opposite sides, can provide intense and uniform illumination for lightbox and signs, suitable for lightbox with thickness minimum 80mm.

Features:

– Use RGB high power LEDs, max 3W each LED when all color chips working, each color can reach 1W maximum

– With 10*45 degrees high quality optics lens, perfect for edge-lit applications

– Build on board RGB controll system, can work with most constant voltage RGB controllers on market

– With screws hole, or adhesive tape(optional) for installation

– Full range of accessories available

– 5 years warranty

Applications:

– RGB lightbox, color changing lightbox

– Indoor decorative lighting

– Wallwash lighting, linear lighting

– Exhibition stand

– Stretch ceiling

– Other advertising or decorative lighting

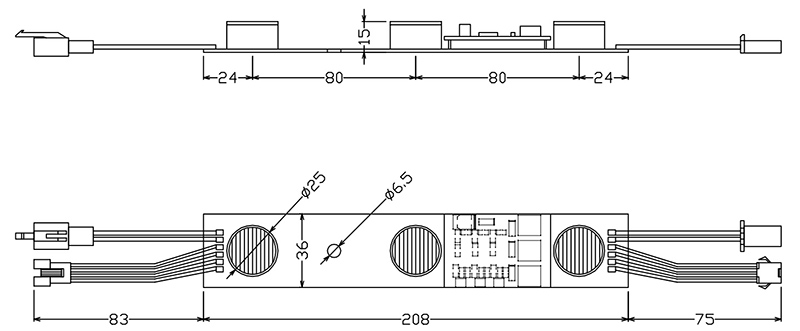

Dimension Drawing:

3 RGB dimension--Ritop Lighting

Specifications:

Product Specifications
Power	9 W	LED Type & Quantity	3pcs 3W RGB LEDs
Item Number	EH1-WS3-RGB	LED Chip Brands	Epistar
Dimension	2083615 mm	IP Rate	IP20
Cuttable	NO	LED Distance	80mm
Certificates	CE, RoHS	Materials	Aluminum PCB
Warranty	3 years	Packing	80pcs/ctn
Cable	7-10cm long connector cable, can be customized
Application	For edge lit lightbox or signs
Electrical & Optical Parameters
Working Voltage	DC 24V	Beam Angle	10*45 degrees
Color	RGB	Connection	10pcs Max in series
Lighting Area	–
Application Data	For Edge-lit, Light box thickness: single sided: 8-15 cm double sided: 10-30 cm Length: Unlimited Height: 1.0-2.0 meter

Full Series:

Has 5 LEDs version available.

EH1-WS3-RGB

EH1-WS5-RGB

Dimension

208*36*15 mm

368*36*15 mm

Max wattage

9 W Max

15 W Max

Lumen

500-650 LM

700-800 LM

LED type

3pcs 3W RGB high power LEDs

5pcs 3W RGB high power LEDs

Beam angle

10*45 degrees

LED distance

80mm LED center to LED center

Input voltage

DC 24V

Cuttable

Max in series connection

10pcs for power, 200pcs for signal

6pcs for power, 200pcs for signal

Control way

3 channels, common anode, constant voltage

Wave length

Red: 620-630nm, Green: 520-526nm, Blue: 460-465nm

Application

For Edge-lit lightbox, thickness: Single lighting face: 10-15 cm
Double lighting faces: 20-30cm Length: Unlimited Width: 1.2-2.0m

Besides the high power side lighting RGB LED modules, we’ve developed full range of edge lit led modules series, can change parts and designs to meet different requirements

You always welcomed to tell us your ideas and requirements, we will provide the right solution and products accordingly.

Also have different types of accessories for quick and easy installation, click the link to know more-Accessories.

edgelit led module collection ritop lighting
