160lm per Watt high lumen 2pcs 2835 backlight led module

160lm per Watt high lumen 2pcs 2835 backlight led module

Introduction:

High lumen 2pcs 2835 backlight LED module, specially designed with high lumen output efficiency, up to 160lm/w.
Mainly used for channel letter, signs, small light box, also indoor outdoor decorative lighting.
Optical wide angle lens, more than 170 degrees, providing soft and uniform illumination for signs lightbox.

Features:

High lumen 2pcs 2835 backlight led module

– Powered by 2pcs 2835, up to 160lm/w.

– Thanks to customized 175 degrees optical lens, can provide excellent back lighting.

– Use AWG#18 UL standard cable.

– ABS high quality plastic housing, good looking appearance, reach IP67 waterproof at the same time.

– Cuttable every one piece, flexible installation for both different shape and sizes.

– With 3M VHB series adhesive tape on back.

– 1.5mm thick Aluminium PCB

Applications:

Backlight led module widely used for advertising ligthing, for example:

– For backlit channel letters, emitting letters

– light box, signage, and other logo signs

– Other advertising or decorative lighting

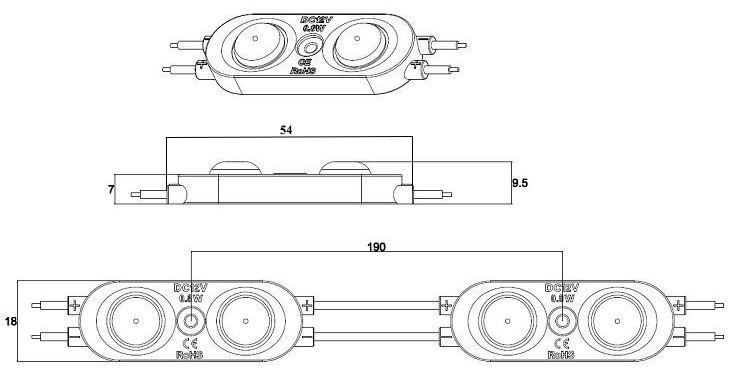

Specifications:

More Options:

We’ve developed full range of 2835 backlight led module, different wattage, different size and designs.

You can tell us your ideas or requirements, we will provide the right solution and product accordingly.

Check more types of LED module by clicking the link–LED Module.

1. Connection:

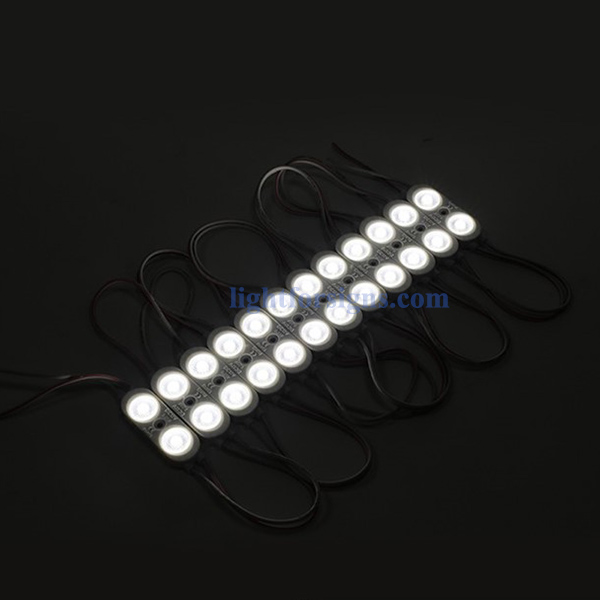

High lumen 2pcs 2835 backlight LED module is 30pcs modules each string,

Different strings should be connected in parallel.

Max quantity connected in series:

With one end power fed: 30pcs

With two ends power fed: 60pcs

Isolated cable ends to prevent short circuit.

2. Install & Applications:
