100Ở Osram 3030 Đèn pha led chiếu điểm cho bảng hiệu biển quảng cáo
Đèn pha LED
Mẫu số: TGS-100W
Công suất: 100W
Đèn LED: 100chiếc Osram / Philips 3030
Kích thước: 402.5*295*60 mm
Điện áp đầu vào: AC 85-265V
Sự bảo đảm: 3/5 năm
- Sự miêu tả
- Cuộc điều tra
100Ở Osram 3030 Đèn pha led chiếu điểm cho bảng hiệu biển quảng cáo
Giới thiệu:
100Ở Osram 3030 LED floodlight spotlight is the best selling series for outdoor billboard signs. Good waterproof and heat dissipation design.
Using Osram Philips 3030 Đèn LED, high CRI(>80Ra) and lighting efficiency more than 125LM/W, provide high brightness lighting with natural render color to billboard signs, pictures.
Osram LEDs, Meanwell drivers, high quality Aluminium shell, 5 bảo hành năm, it is designed for applications with high requirements.
Đặc trưng:
– Innovative G shape buckle, lock the surface tempered glass securely without screws, good looking
– Special optical design, lighting efficiency increased by 50% more than traditional ones
– Using Osram or Philips 3030 SMD LEDs, 1W per LED, other LEDs still work well if some LEDs failed
– CRI cao >80Ra, high lumen output more than 125LM/W
– Streamlined heat sink design of Aluminium shell, good heat dissipation while keeping ultra-slim body
– Can choose Meanwell driver for 5 bảo hành năm
– 270 degrees install angle adjustable
– Can stand level 17 hurricane
Pictures Demonstration:
– Innovative G shape buckle, lock the surface tempered glass securely without screws

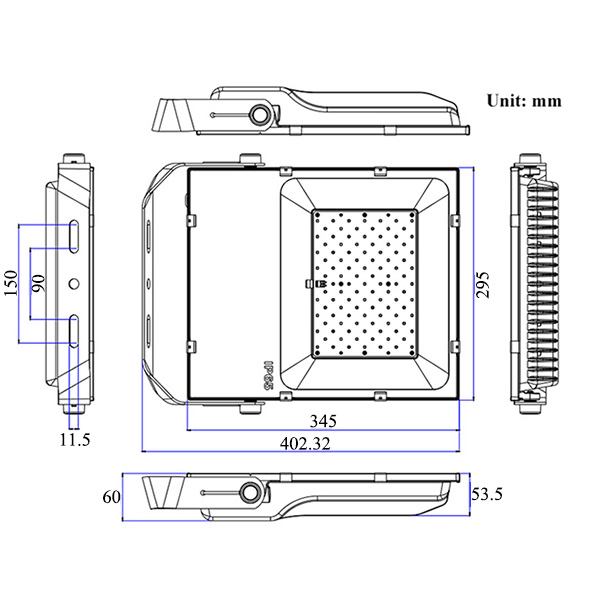

– Structure: streamlined heat sink design of Aluminium shell, good heat dissipation while keeping ultra-slim body
– Special optical design, lighting efficiency increased by 50% more than traditional ones

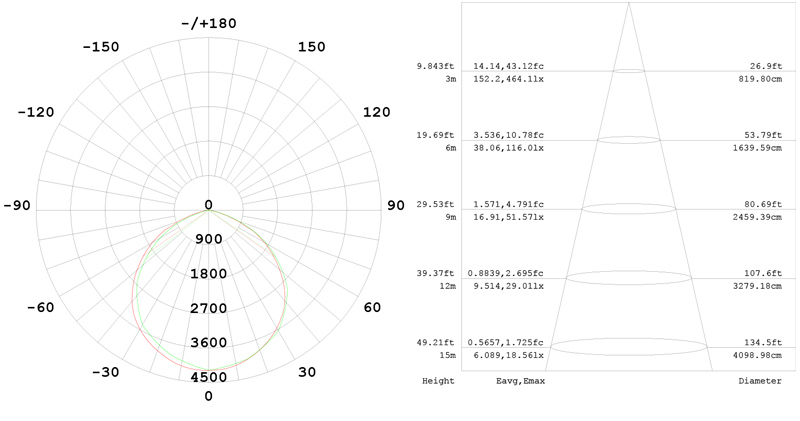

– ISO illumination data
Các ứng dụng:
– Outdoor big size advertising billboards, dấu hiệu
– Exhibition hall & stand, other spot lighting, focus lighting applications
– Shopping mall, park, parking lot, playground, gymnasium
– Building facade, public corridor, other wall-wash lighting
– Other indoor and outdoor lighting
Thông số kỹ thuật:
Thông số kỹ thuật sản phẩm | |||
Sức mạnh | 100 W | Loại đèn LED & Số lượng | 100chiếc 3030 DẪN ĐẾN |
Số mặt hàng | TGS-100W | Thương hiệu chip LED | Osram / Philips |
Kích thước | 402.5*295*60 mm | Tỷ lệ IP | IP65 |
Driver | Meanwell/CE certificated | Sự bảo đảm | 3-5 năm |
Working Temperature | -30~+50°C | Độ ẩm làm việc | 10%~95%RH |
Best Working Temperature | -20~+30°C | Nhiệt độ bảo quản | -40~+60°C |
Đóng gói | 1chiếc mỗi thùng, kích thước thùng carton: 49*39*14cm, GW: 6.2KG/ctn | ||
Điện & Thông số quang học | |||
Điện áp đầu vào | AC 85-265V | Góc chùm | 120 độ |
Lumen đầu ra | >12000 LM | Nhiệt độ màu | 2700-6500K |
HÉT LÊN | >80 Ra | Power Factor | >0.95 |
Đầy đủ sê-ri:
For 100W Osram 3030 LED floodlight spotlight, this series has 10-200W available as below.
Mục số | Công suất | Đèn LED | Kích thước | Lumen | Góc chùm |
TGS-10W | 10W | 10chiếc 3030 | 166x116x32mm | >1200LM | 120 độ |
TGS-20W | 20W | 20chiếc 3030 | 216x162x40mm | >2400LM | 120 độ |
TGS-30W | 30W | 30chiếc 3030 | 226.5x167x40mm | >3600LM | 120 độ |
TGS-50W | 50W | 50chiếc 3030 | 310x220x47.5mm | >6000LM | 120 độ |
TGS-80W | 80W | 80chiếc 3030 | 354x245x55mm | >9600LM | 120 độ |
TGS-100W | 100W | 100chiếc 3030 | 402.5x295x60mm | >12000LM | 120 độ |
TGS-150W | 150W | 150chiếc 3030 | 430x330x60mm | >18000LM | 120 độ |
TGS-200W | 200W | 200chiếc 3030 | 470x360x60mm | >24000LM | 120 độ |
We’ve developed full range of Osram 3030 LED floodlight spotlight series, có thể thay đổi các bộ phận và thiết kế để đáp ứng các yêu cầu khác nhau
Bạn luôn được hoan nghênh khi cho chúng tôi biết ý tưởng và yêu cầu của bạn, chúng tôi sẽ cung cấp giải pháp phù hợp và sản phẩm phù hợp.
