BIPS build in power supply high voltage AC 220V edgelit LED module bars
Model No.: EH1-WS5GY-CREE
Wattage: 17W Max
Size:391*27*14mm
Input voltage: AC 100-240V
Lens angle: 10*45 degrees
Warranty: 3 years
- Description
- More
- Inquiry

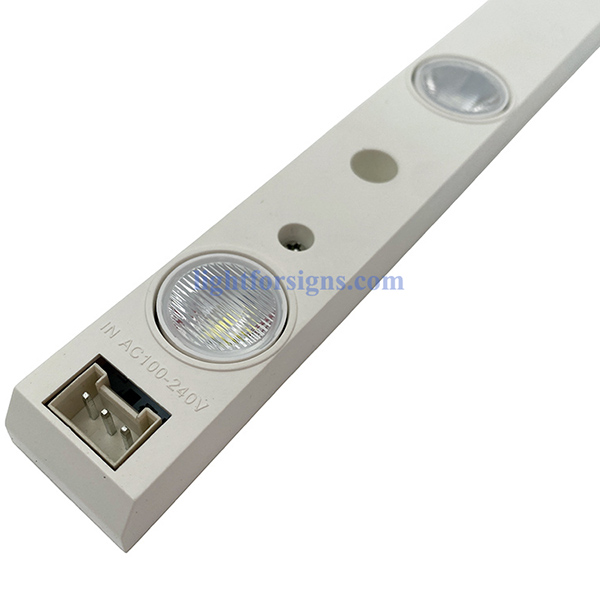

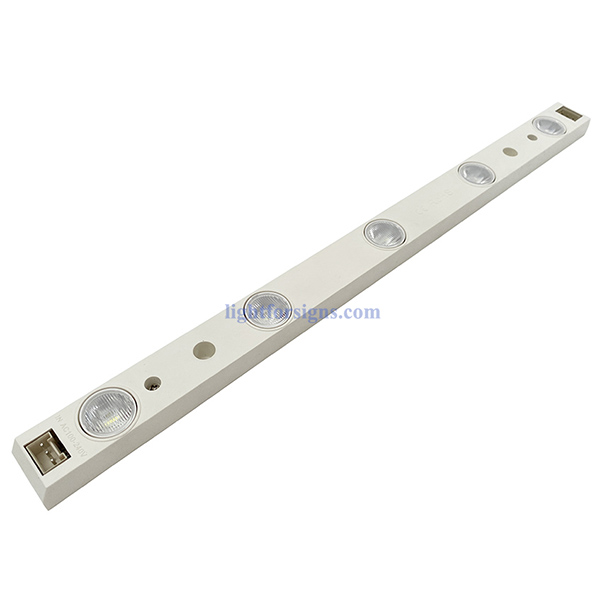

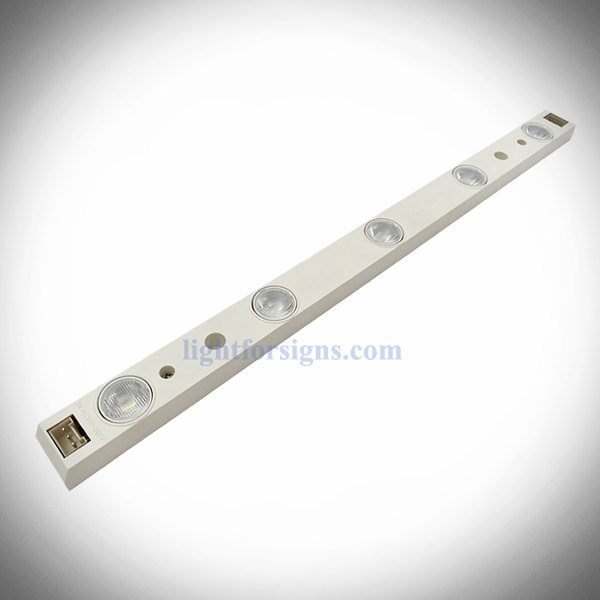

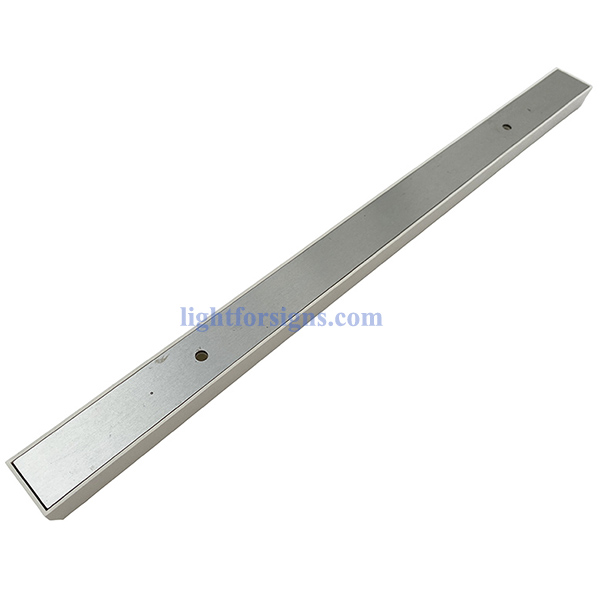

BIPS build in power supply high voltage AC 220V edgelit LED module bars for lightbox
Introduction:
Build in power supply high voltage AC 220V edgelit LED module bars, no need of external drivers,
AC 100-240V working voltage, easy connection and labor cost saving, unique ABS case design.
It is for same applications as normal EH1-WS* series, which is the perfect light source of advertising light box,
mainly used for edge lit single sided and double sided lightbox, or exhibition stand.
Features:
– With build in power supply in every modules, no need of external driver/power supply,
easy connection and labor cost saving.
– AC 100-240V wide input voltage
– CREE XPE, XTE, XPG series LED available, high lumen output, long working life.
– With 10*45 degrees high quality optical lens, perfect for edge-lit illuminated light box and signs,
beam angle can be customized.
– With screws hole on modules
– Unique ABS case design, private mould
Applications:
– For both edgelit single sided and double sided lightbox

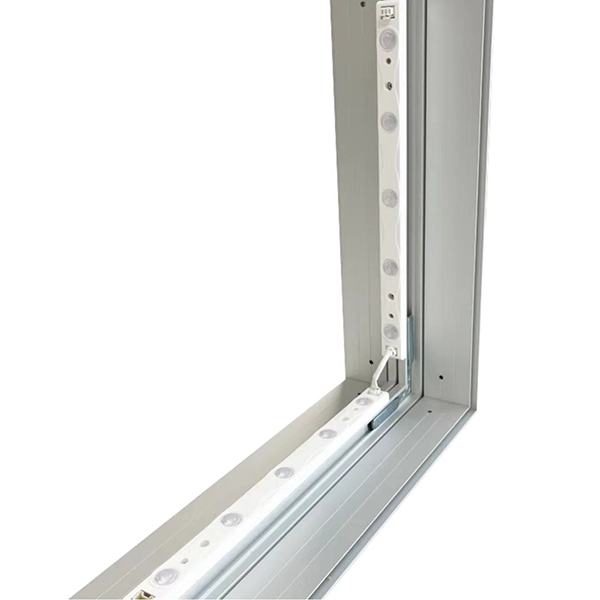

– Light box on the floor, on the wall or in the ceiling
– Exhibition stand
– Stretch ceiling
– Other advertising or decorative lighting
Specifications:
Product Specifications | |||
Item Number | EH1-WS5GY-CREE | LED Type & Quantity | 5pcs CREE XTE |
Power | Max 17 W | Lumen Output | 1200-1400 LM |
Dimension | 391*27*14 mm | Dimmable | NO |
Working Voltage | AC 100-220V | Color Temperature | 2700-7000K |
Beam Angle | 10*45 degrees | LED Distance | 80mm |
Warranty | 3 years | Materials | Aluminum PCB |
IP Rate | IP 20 | Flickering | NO |
Connection in series | Max 20pcs @220V, 10pcs @110V | ||
Application Data | For Edge-lit, Lightbox thickness: single sided: 10-15 cm double sided: 15-30 cm Length: Unlimited Height: 1-2.5 meters |
More Options:
Besides the BIPS AC 220v edgelit led module bars, we also developed full range of edge light led module bars,
can change parts and designs to meet different requirements.
You are always welcomed to tell us your ideas or requirements, we will provide the right solution and product accordingly.
At the same time we have different types of accessories for quick and easy installation, click the link to know more – Accessories.

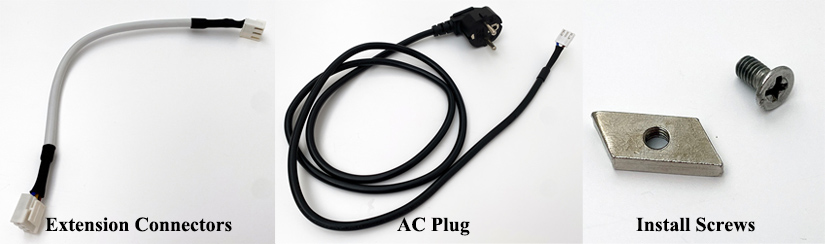

1. Accessories:
Different kinds of accessories are available for high efficiency work,
Can also provide customization according to your requirements.
2. Connection:

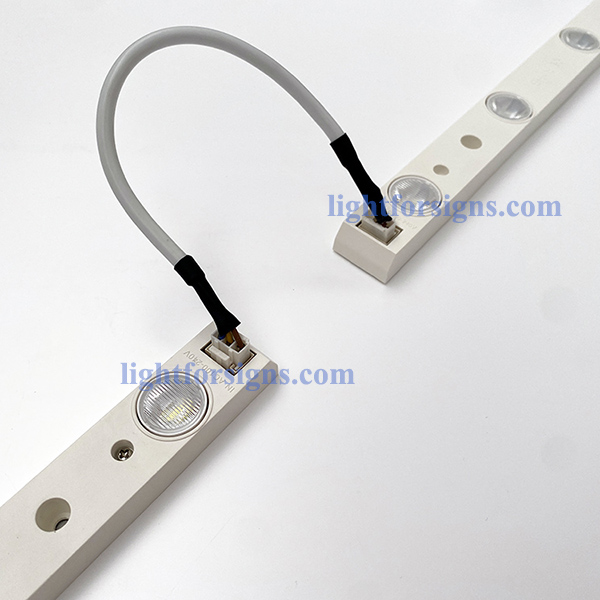

1. Use connectors to connect different modules

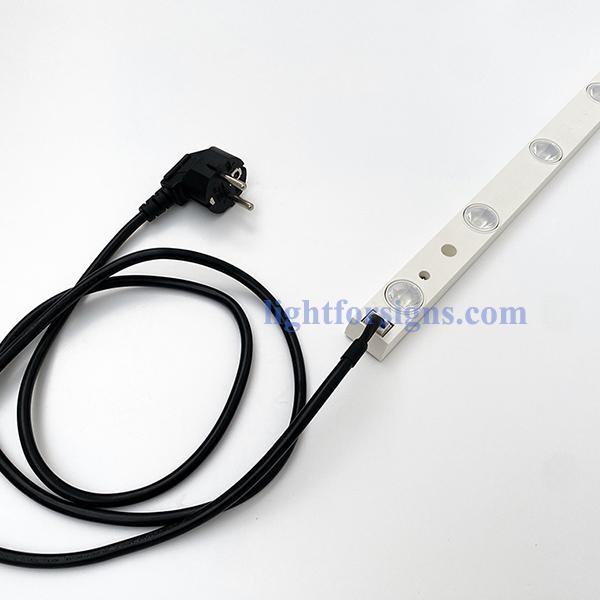

2. AC plug and connector must use 3 pins type with grounding

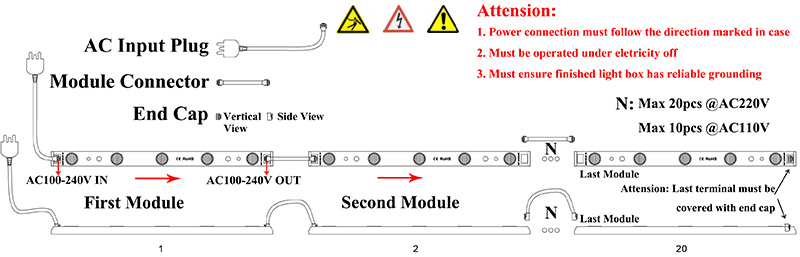

3. Power connection must follow the direction marked on case,
wrong direction will cause unrecoverable damage of build-in driver
4. Must make sure the finished light box or application has reliable grounding
5. Must be operated by professionals, under eletricity off
3. Install & Applications:
